Submersible Filter Kit

The PondMAX Ultra-Series All-in-One Filter is a submersible unit which enhances, cleans, and maintains a healthy water feature, fish pond, water garden, or fountain..

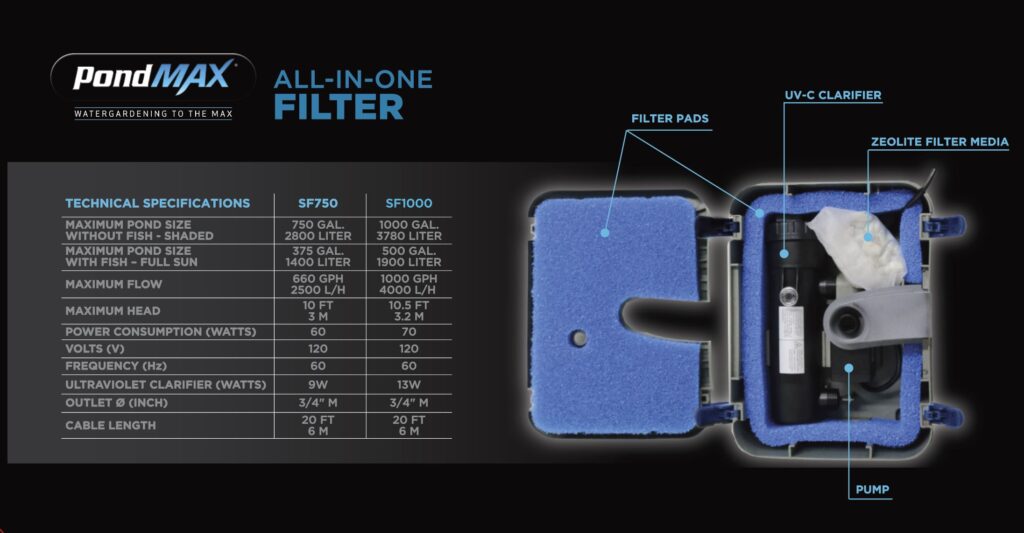

Combined UV-C Clarifier, Filter, Pump & Fountain Nozzle
Suitable for small ponds and water features
Large surface area filter to minimize maintenance intervals

INSTALLATION

1. Place the All-In-One filter at the bottom of the pond. Use a shim/riser underneath the filter if the telescopic tube, even at maximum
extension, does not come out of the water.

2. Level the All-In-One filter so the telescopic tube and fountain nozzle are straight, so the water flows vertically.

3. Connect the power cable only after completing the filter installation. The cable powers both the pump and the UV-C lamp. Water flowing
from the nozzle will indicate that the pump is working, and the bright blue light will indicate that the UV-C lamp is working.

4. Never lift the filter with the power cord since this will damage the cord, the UV-C filter, or the pump.

5. Lift the filter only by the handle in the lid. If necessary, hook a retrieval cord to the handle to facilitate removing the filter from the pond
